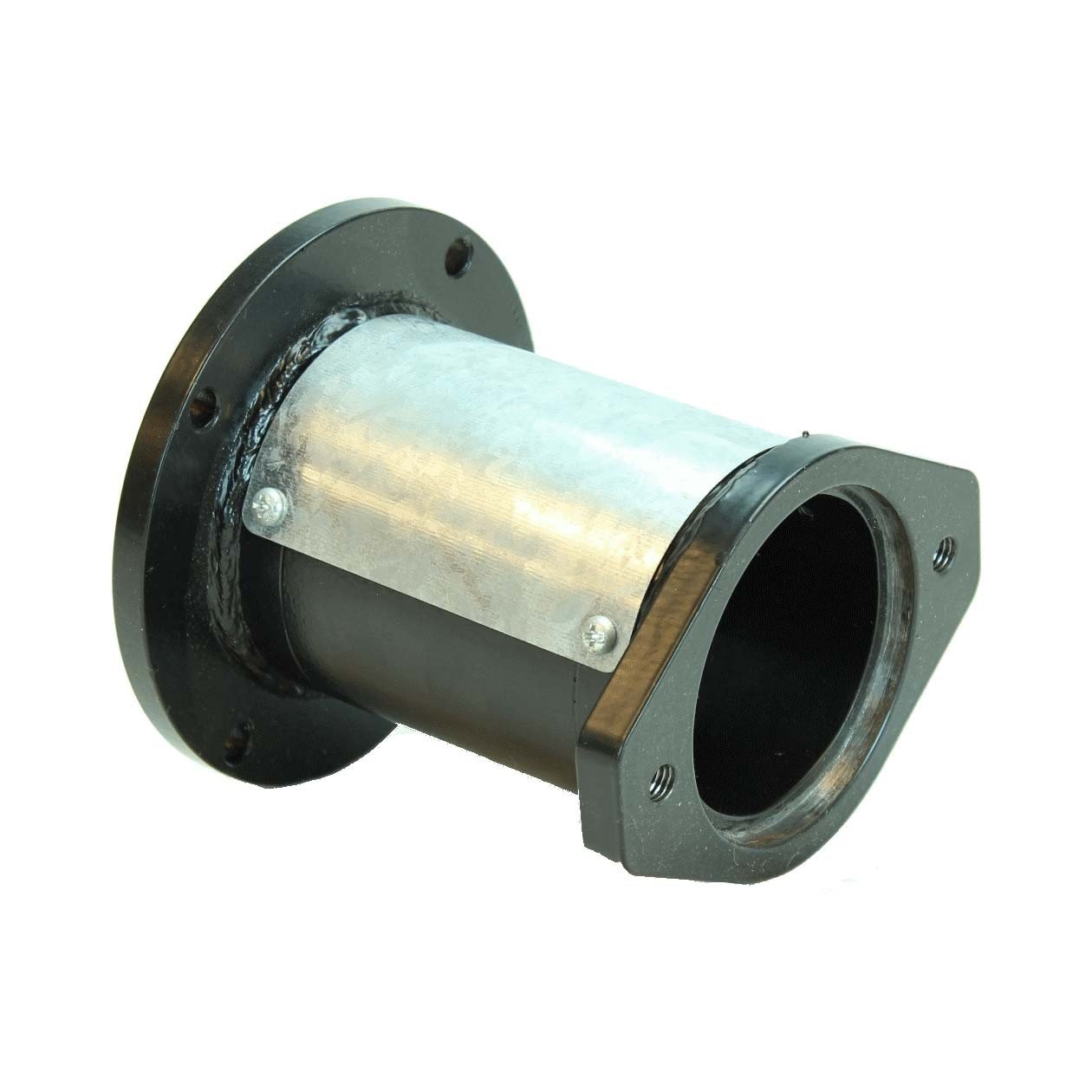

Log Splitter Pump Mount Bracket 22GPM, 28GPM

---

Product Details

• Shipping Weight: 8 pounds
• Manufacturer: RuggedMade

• The hole pattern for the pump side is the standard SAE-A 2-bolt pattern
• Fits most 22GPM and 28GPM 2-stage log splitter pumps
• Service cover and screws are included
• Pump mount holes are threaded: M10 X 1.50
• Hole pattern is drilled to fit on a variety of engines.

DETAILS Welded Steel Pump Mount Bracket Hole pattern is drilled to fit on a variety of engines. It is compatible with most Honda GX-series engines between 8hp and 13hp, Loncin and Lifan motors between 8hp and 15hp, and most “Chinese Clone” engines. The hole pattern for the pump side is the standard SAE-A 2-bolt pattern Fits most 22GPM and 28GPM 2-stage log splitter pumps Service cover and screws are included Pump mount holes are threaded: M10 X 1.50

Bracket Length: 5.5″

Pump Side Hole Pattern: SAE-A 2-Bolt

Pump Mount Holes: M10 x 1.50 (Threaded)

Pump Side Bolt Circle: 4.2″ ID

Engine Side Bolt Circle: 5″ ID (3.5″ Square Side)

Removable safety cover and screws included
