Description

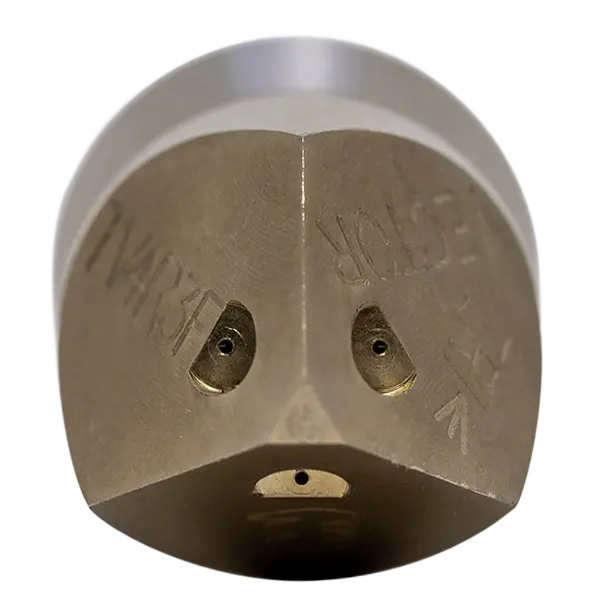

The Trivector Penetrating Nozzle 1/4″ with QR-C One Piece SS Skirt is shaped especially to physically break down blockages with the front edges and chisel nose, along with 3 powerful front penetrating jets and 4 rear thrusting jets.
Application
The Trivector Nozzle’s 3 front jets set at 15° and 4 rear jets at 30°. It is used to break down heavy grease, soil, tree roots or dry choke blockage material. Although it does not deliver the thrust of some alternative nozzles, there is plenty of power to drive and flush as the front jets do their job on the blockage.
Specifications
|
Front Jets |
3 – 15° |
Style |
Penetrating |
|
Rear Jets |
4 – 30° |
Flow Index |
055 |
|
Connection |
QR-C |
Pipe Size |
80mm – 150mm |
|
Weight |
75g |
Part # |
TV4R3F-BA8 |
|
Dimensions |
L – 61mm |
W – 23mm |
H – 23mm |
To view the 2023/24 Mustang Nozzle Catalogue, click this link. Includes nozzles, nozzle boxes, hoses, hose reels, spare parts and accessories. Request your free copy from The Jetters Edge team today.
