Description

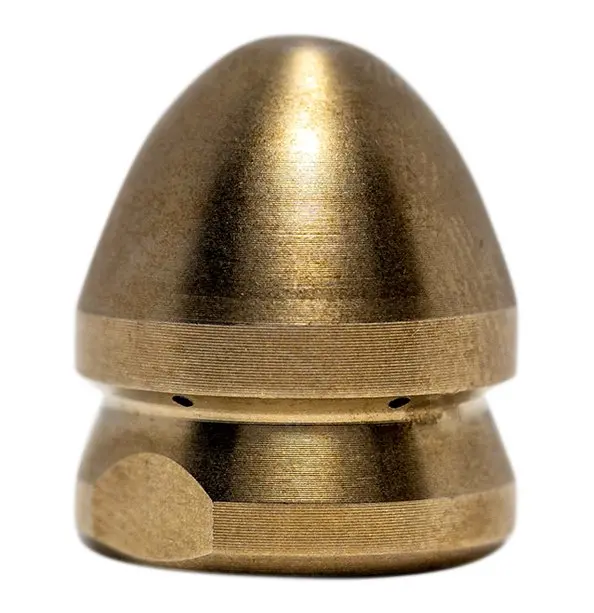

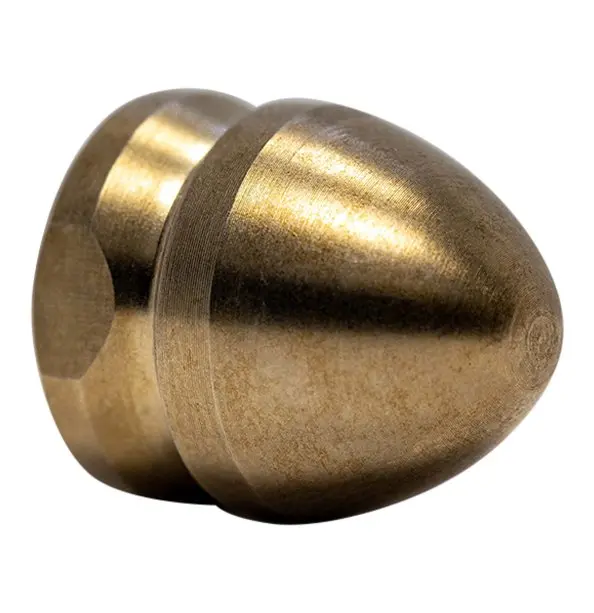

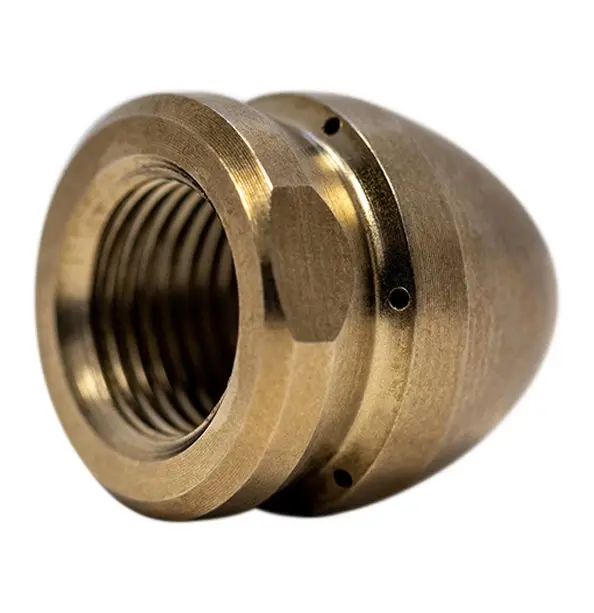

Compressor Nozzles 1/8″ Series with BSP 1/8″ F are available with the choice of either Thrusting, Penetrating and Invading jet configuration. The small body with a round nose allows this nozzle to bury deep into tight blockages. Some NPT options are available.
Application
It is used where a small nozzle is required to break up blockage material in small diameter drains and clears tree roots, sand, soil, grease, ice and debris. It is used on 1/8″ Whip Hoses, Bullet Nozzles and all other 1/8″ hose fittings.
Specifications
|
Nozzle Styles |
Thruster |
Penetrator |
Invader |
|
Front Jets |
0 – 0° |
1 – 0° |
1 – 0° |
|
Rear Jets |
6 – 20° |
3 – 30° |
6 – 30° |
|
Part # |
C6R |
C3R1F C3R1F-N |
C6R1F C6R1F-N |
| Connection | BSP 1/8″ F |
BSP 1/8″ F NPT 1/8″ F |
BSP 1/8″ F NPT 1/8″ F |
|
Pipe Size |
Up to 100mm |
Flow Index |
055 |
|
Weight |
10g |
||
|
Dimensions |
L-17mm W-14mm H-14mm |
||
To view the 2023/24 Mustang Nozzle Catalogue, click this link. Includes nozzles, nozzle boxes, hoses, hose reels, spare parts and accessories. Request your free copy from The Jetters Edge team today.
