Description

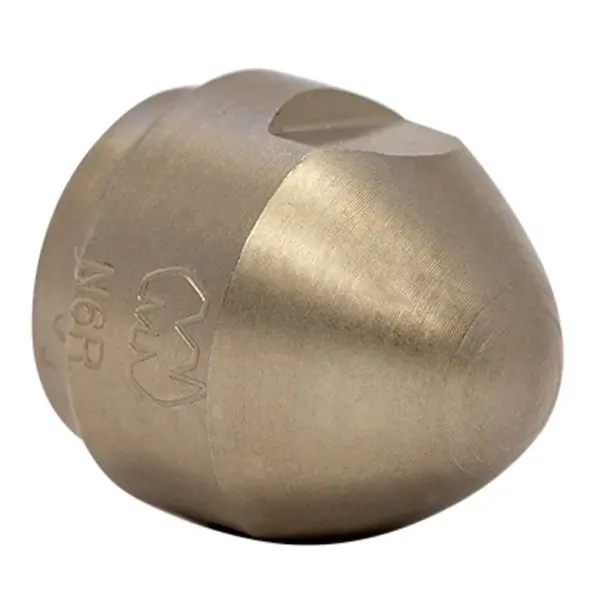

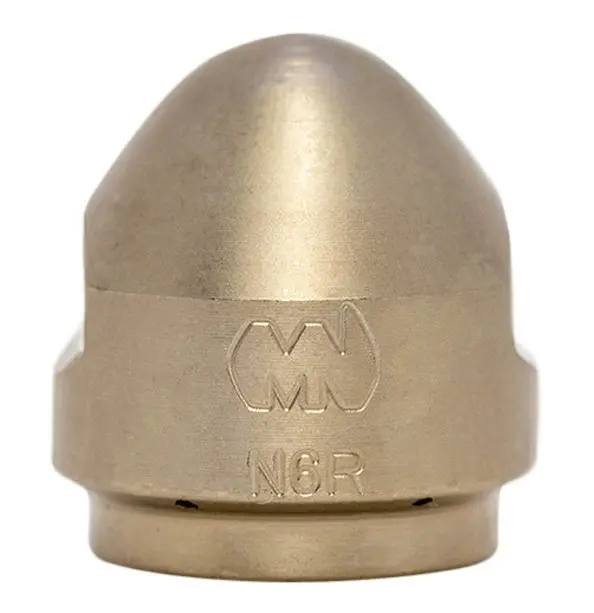

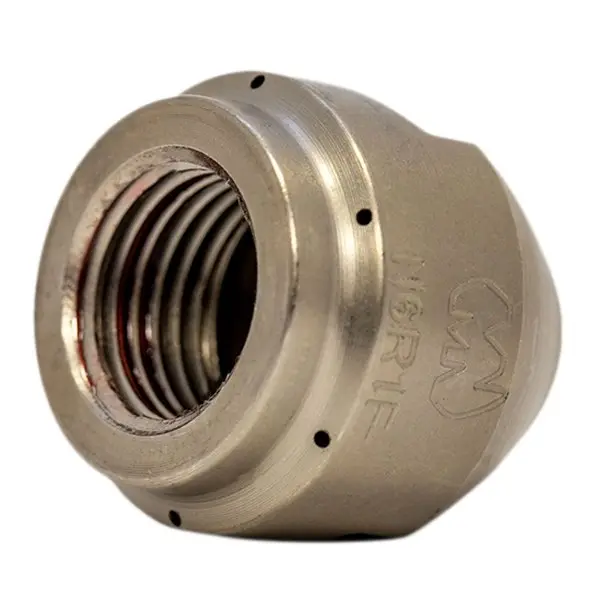

The Negotiator Nozzle 1/4″ Series is available in Thrusting, Penetrating and Invading jet configurations. These are great ‘general all round’ sewer and drain nozzles.
Application
The Negotiator Nozzles were designed with traps and gullies in mind. The short round head allows the nozzle to pull the hose around a waste trap/gully without getting caught on most joints.
NPT Thread Available for the Negotiator Nozzle 1/4″ Series.
Specifications
|
Nozzle Styles |
Thruster |
Penetrator |
Invader |
|
Front Jets |
0 – 0° |
1 – 0° |
1 – 0° |
|
Rear Jets |
6 – 20° |
3 – 30° |
6 – 30° |
|
Part # |
N6R N6R-N |
N3R1F N3R1F-N |
N6R1F N6R1F-N |
| Connection |
BSP ¼” F NPT ¼” F |
BSP ¼” F NPT ¼” F |
BSP ¼” F NPT ¼” F |
|
Pipe Size |
80mm to 100mm |
Flow Index |
055 |
|
Weight |
33g |
||
|
Dimensions |
L-23mm W-22mm H-22mm |
||
To view the 2023/24 Mustang Nozzle Catalogue, click this link. Includes nozzles, nozzle boxes, hoses, hose reels, spare parts and accessories. Request your free copy from The Jetters Edge team today.
